NEP not checking the sub interface for IP route/ route builder

        Details

        • Customer:
          OMAN-Tel

          Description

          While performing IP route on failed route builder cases, the IP route algorithm doesn't check the exact source interface which is the sub interface but instead it takes the interface as the source interface. Due to this it is not able to check the correct routing table and hence failing to build the route.

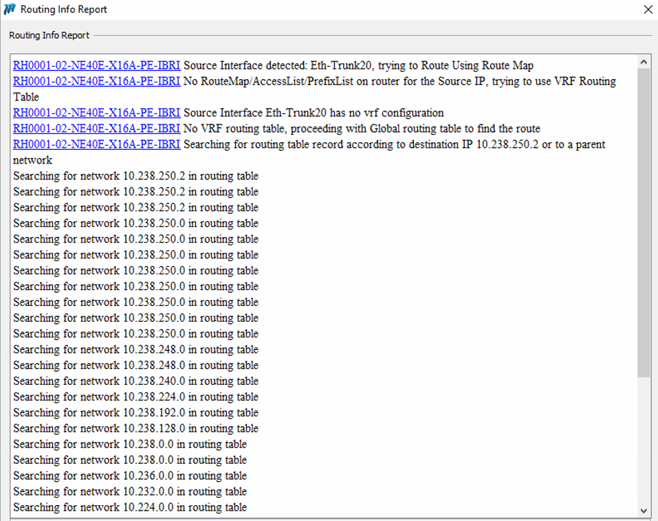

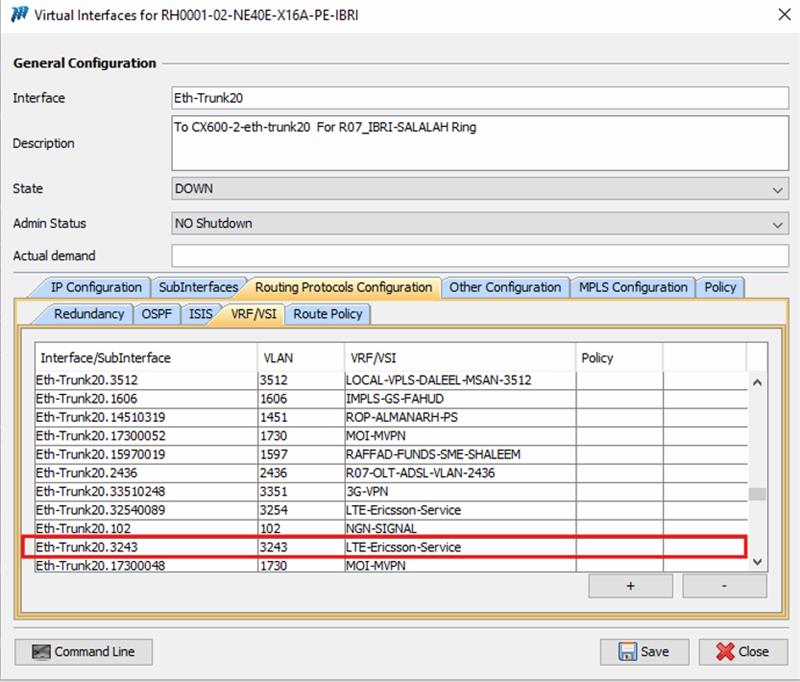

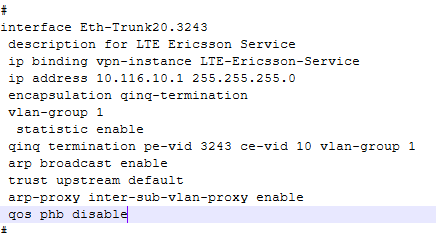

          Attached screen shots for node BD02870 with source GW: 10.116.10.1 and destination GW: 10.238.250.2, " with main failure reason of Destination IP unreachable in route builder ".

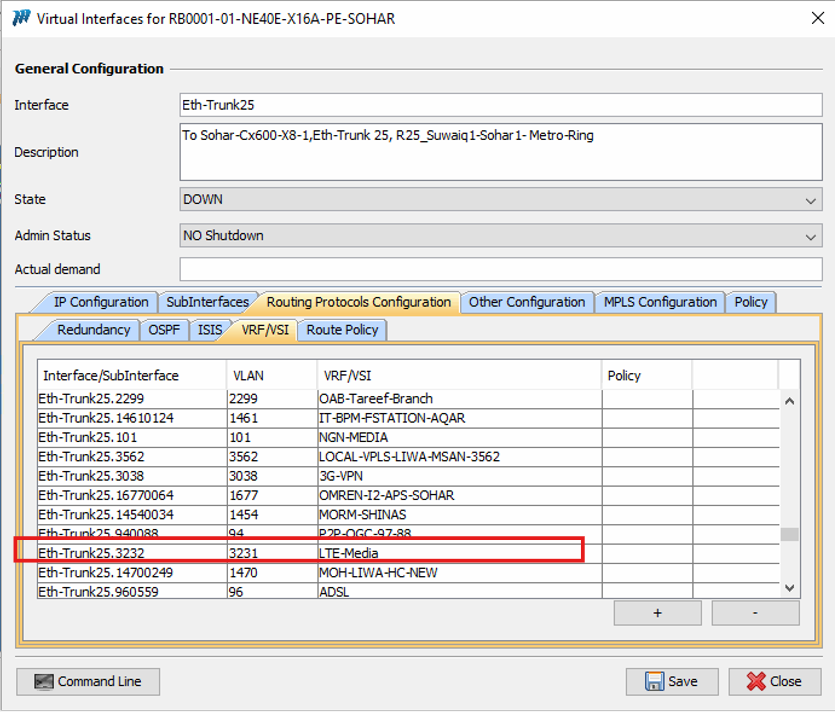

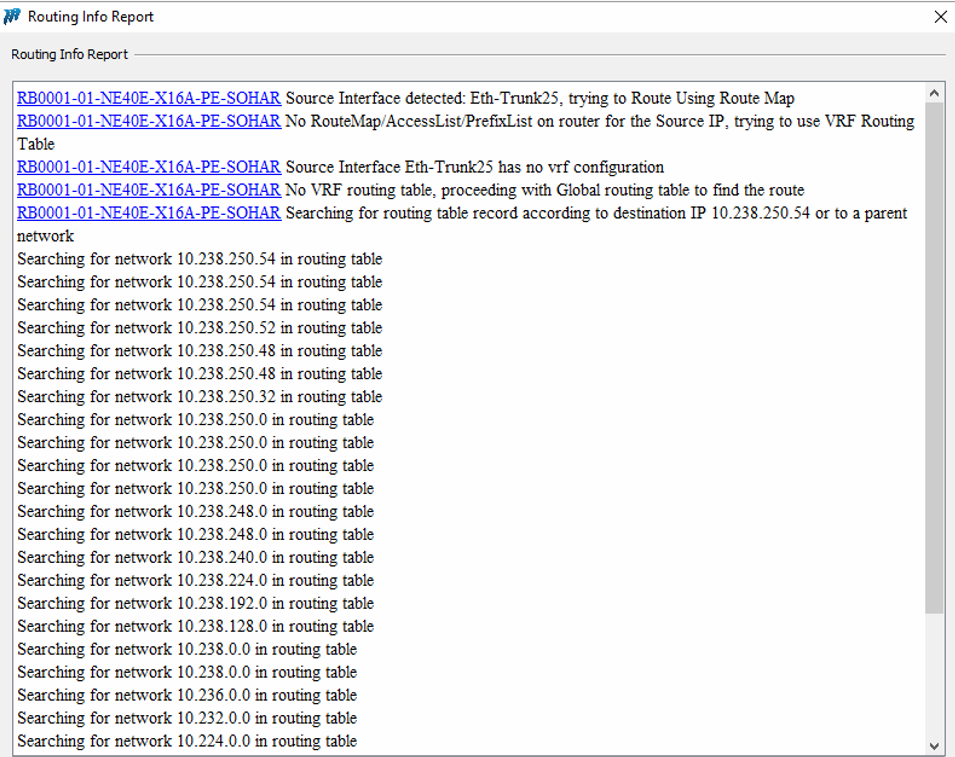

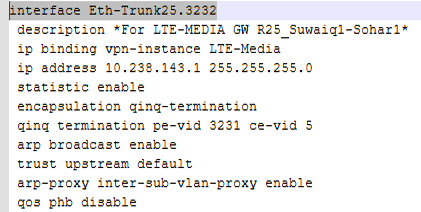

          Also attached screen shots for node LB00010 with source GW: 10.238.143.1 and destination GW: 10.238.250.54. " with main failure reason of Next Hop IP missing for Router in route builder"

            Activity

            Ascending order - Click to sort in descending order
            Hide
            Permalink
            Bessem Manita added a comment -

            As discussed the issue is not reproducible on prod and .180 platforms, it seems it was a data issue.
            Dear Eyob please check and confirm.

            Show
            Bessem Manita added a comment - As discussed the issue is not reproducible on prod and .180 platforms, it seems it was a data issue. Dear Eyob please check and confirm.
            Hide
            Permalink
            Eyob Tatek added a comment -

            Error is not able to be reproduced, ticket can be closed

            Show
            Eyob Tatek added a comment - Error is not able to be reproduced, ticket can be closed
            Hide
            Permalink
            Abir Messaikeh added a comment -

            closed - data issue

            Show
            Abir Messaikeh added a comment - closed - data issue
