  1. L3 Support
  2. LS-487

Fix Physical Connectivity in Bulk

        Details

        • Customer:
          OMAN-Tel

          Description

          Please we need to find a way to build automatically a physical connectivity between two nodes that are already routed logically.
          Following the below steps for one sample case:

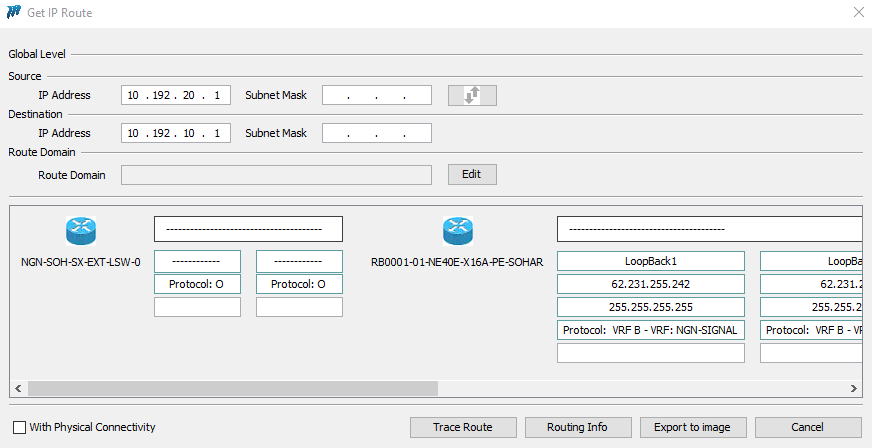

          In case of end to end fully routed case, without physical connectivity please find the case in below. As you can see ,

          NGN Node: SOHAR_C5_UMG

          Node1:NGN-SOH-SX-EXT-LSW-0
          Node2:RB0001-01-NE40E-X16A-PE-SOHAR

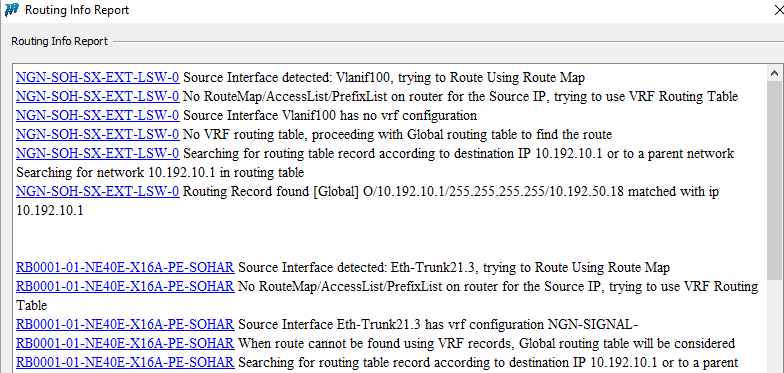

          Routing Info

          AS you can both nodes are now routed through logical information based on routing table. Hence, we need to complete the process by checking if they will be done physically, and nothing was connected between those two nodes. So, we build the connectivity manually between GETH ports from both extremities.

          Created link:

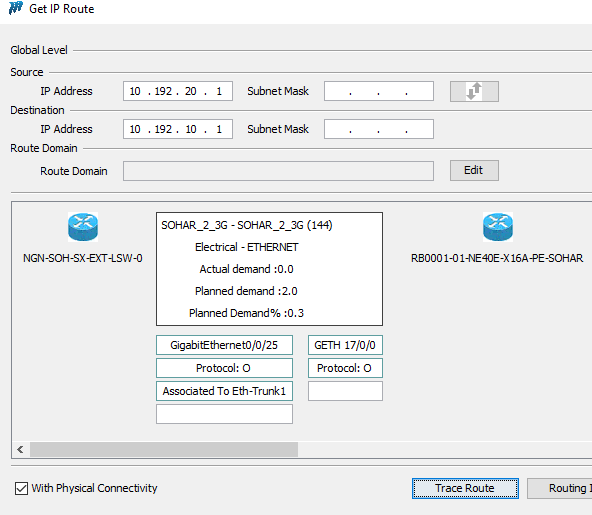

          You can notice in below how the connectivity now is fully routed after creating a link between the GETH, UP interfaces for both Extremities.

            Activity

            Ascending order - Click to sort in descending order
            Hide
            Permalink
            Bessem Manita added a comment -

            Dear Khaled,
            Kindly provide detailed rules outlining how the physical connectivity should be implemented between routers.
            Specifically, we would appreciate clarification on the following points:

            • What are the criteria or indicators to determine that a physical connection is required between two routers.
            • How should we identify the appropriate ports to use at each end.
            • How can we deduce the Link Type, and are there any other parameters or configurations that need to be considered during link creation.
            Show
            Bessem Manita added a comment - Dear Khaled, Kindly provide detailed rules outlining how the physical connectivity should be implemented between routers. Specifically, we would appreciate clarification on the following points: What are the criteria or indicators to determine that a physical connection is required between two routers. How should we identify the appropriate ports to use at each end. How can we deduce the Link Type, and are there any other parameters or configurations that need to be considered during link creation.
            Hide
            Permalink
            Abir Messaikeh added a comment -

            patch .1328 released , Added a pre-RB process to handle link creation based on neighbor record

            Show
            Abir Messaikeh added a comment - patch .1328 released , Added a pre-RB process to handle link creation based on neighbor record
            Hide
            Permalink
            Bessem Manita added a comment -

            released in patch 3.7.0.1328

            Show
            Bessem Manita added a comment - released in patch 3.7.0.1328
